Cyclone-X page
旋風專頁
實物跟圖片可能有出入。

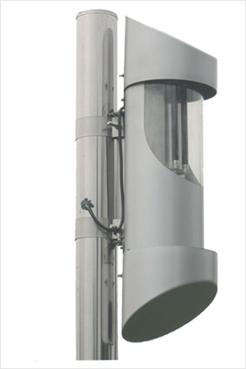

旋風 (Cyclone-X) -戶外大型用(~5000平方尺),防水,可代替石油氣蚊機。低營運成本,不浪費石油資源(電費少於一元一日,石油氣蚊機約幾百元一個月)。蚊蟲在機內被打死及自動排出,非常低維護成本,沒有石油氣機的維護問題。合地盤,花園,會所,球場,貨倉使用。
Designed
to replace the un-environmental propane (LPG) mosquito machine.
It has the advantages of:
Low running cost (electricity cost <HKD1/day, while LPG cost several hundred
HKD / month)
Low maintenance cost (it is designed to minimize the consumable parts. Almost
no consumable parts except the UV tube)
Almost worry free design: Mosquitoes are killed inside the machine by the
patented mechanism and cleaned automatically.
建議安裝方法:電源 -> 漏電斷路掣(水氣制) -> 時間制(16:00-09:00) -> 旋風
Suggested installation method: power source -> Earth Leakage Circuit
Breaker -> Timer (16:00-09:00) -> Cyclone-X
在炎夏時,如旋風被太陽直接暴晒,機內電子火牛可能會過熱並自動保護把供給光管之電源關閉(只要把電源關掉,待旋風冷卻,就可以再開),而且那時蚊蠅都不會出動。所以有以上時間制之建議。
During summer, there is a possibility that the Cyclone will be
overheated when operating directly under sunlight (If this happened, please cut
off the power supply, wait until the Cyclone is cooled down, it should be
working again; this is the over-heat protection system). Further, mosquitoes and other insects will
most likely hide away during that time.
So, we suggested installing the timer for this reason.
維護:請每月把底蓋除下,清除機內之塵埃及蚊蠅屍體。作出任何維護時,必須電源切斷。
Maintenance: Please clean the internal of the cyclone every month by removing
the lower cover. When during any
maintenance, make sure the main power source is off.
以下是旋風之使用實例
The following are some real life example of
Cyclone-X

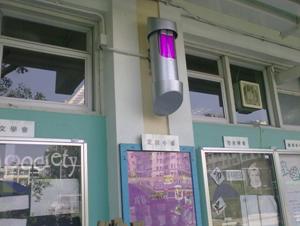

屯門某中學(註:管的顏色跟拍攝的圖片有出入。)
A secondary school at Tuen Mun

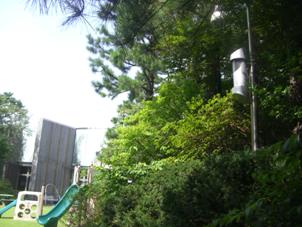

韓國議會主席家
The house of Chairman of Congress
三星集團主席家
The house of Chairman of SamSung, Lee Jun Hee
